LAGAN
Wall mounted extractor hood

65

energy tag
YEO 504.013.83
Out of stock

Successfully saved notification You will be notified to the email with any news about the availability of this product.

5% discount with IKEA Family
Calculate your monthly payment here

Home Delivery: Flate rate of 30€
Pick it up for free at IKEA La Laguna or IKEA Tenerife SUR

5% discount with IKEA Family
Calculate your monthly payment here

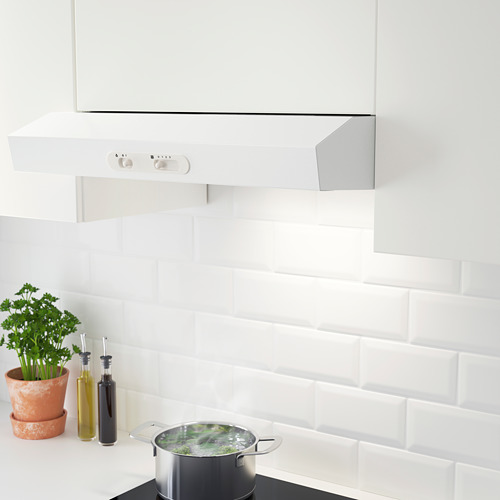

A kitchen hood with LED lighting and all the basic functions you need. Can be mounted in a wall cabinet for a uniform look in the kitchen. Combine with LAGAN oven and LAGAN cooktop.
Article no YEO 504.013.83

Induction cooktop,
IKEA 300 negro

269

Induction cooktop

359

Single lever kitchen faucet

29

Induction cooktop

249

Wall mounted extractor hood,
Stainless steel

89

energy tag
Induction cooktop,
IKEA 500 white

509

Induction cooktop with integrated extractor

1.199

energy tag
Oven,,
white

199

energy tag
Refrigerator/freezer,
freestanding/white, 115/59L

379

energy tag
Built-in dishwasher,
45 cm

459

energy tag
Fridge with freezer compartment,
freestanding/white, 97/16L

239

energy tag
Built-in dishwasher,
60 cm

359

energy tag
Charcoal filter

15

Flexible fan hose

19



Key features

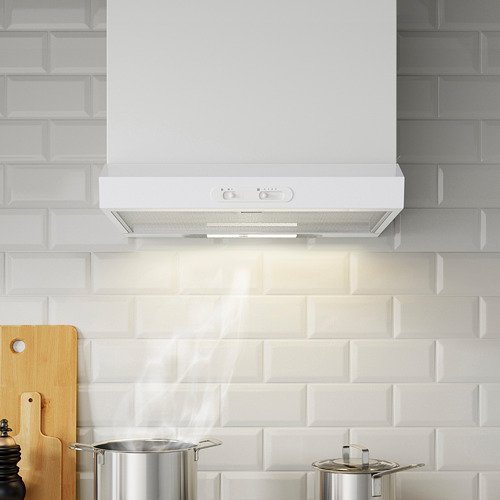

Can be installed in two ways, either vented to the outside or in recirculation mode fitted with charcoal filter.

The included LED bulb provides energy saving.

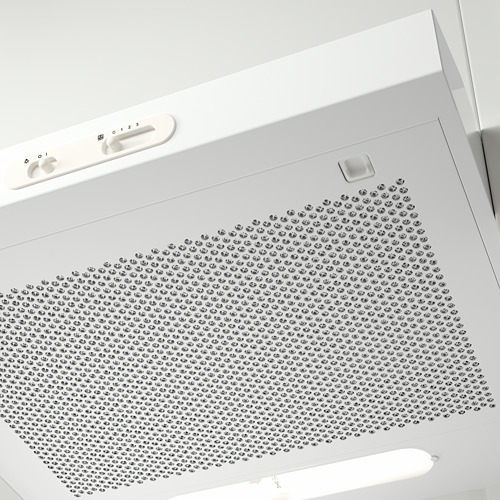

Control panel placed in front for easy access and use.

You can easily remove and clean the grease filter in the dishwasher.

Designer

IKEA of Sweden

Good to know

Energy efficiency class: D.

Extraction rate in exhausting mode: 160 CFM.

Noise level at max. exhaust speed: 71 dB (A).

Extraction rate in re-circulation mode: 44 CFM.

Motor power: 115W.

Voltage: 220-240V.

Noise level at max. re-circulation speed: 71 dB (A).

Wall mounted extractor hood with 3 different speeds.

This product bears the CE mark.

For installation to a valve: to be completed with NYTTIG TUB 5" flexible pipe for extractor hood.

For recirculation installation: to be completed with charcoal filter NYTTIG FIL 900.

Measurements

Assembled size

Width:60,0 cm
Depth:51 cm
Height:13 cm
Cord length:1,33 m
Weight:7,20 kg

Package size & weight

Do you take it home? Make sure it fits in your vehicle.

Length: 62 cm
Width: 55 cm
Height: 15 cm
Weight Gross: 7,12 kg
Weight Net: 5,60 kg
Volume per package: 50,7 l

Assembly instructions

Advice instructions

Only the latest versions of these documents are available for download. This means that there may sometimes be differences between the documents you download and the versions that come with the product.
